V9.6 RACK & PINION ROOF VENTILATION SERIES The V9.6 RP Series greenhouses offer a solution to ventilation and humidity problems and are resistant to both cold and hot climates. The V9.6 RP structures are designed to provide maximum growing area and superb natural light distribution together with Rack & Pinion roof ventilation mechanism system, located in the center of the arches, allowing better air ventilation and removal of condensation. Roof ventilation (in 9.6 Models) provides 12% up to 24% of the total ventilation of the covered area. The opening system is composed by a motor gearbox which transmits the movement of the Rack & Pinion system.   V9.6 RP greenhouses are suitable for all types of vegetables and flowers, including varieties that require the hanging trellis technique.
  • The angle of the roof gives better light transmission.
  • Side wall openings can be covered with insect-proof net and roll-up curtains.
  • Suitable for polyethylene or polycarbonate covering.
  • The design accommodates a variety of equipment and accessories (thermal screens, fans, air circulators, irrigation systems, heating systems, control systems, substrate media, automatically operated curtain…..).

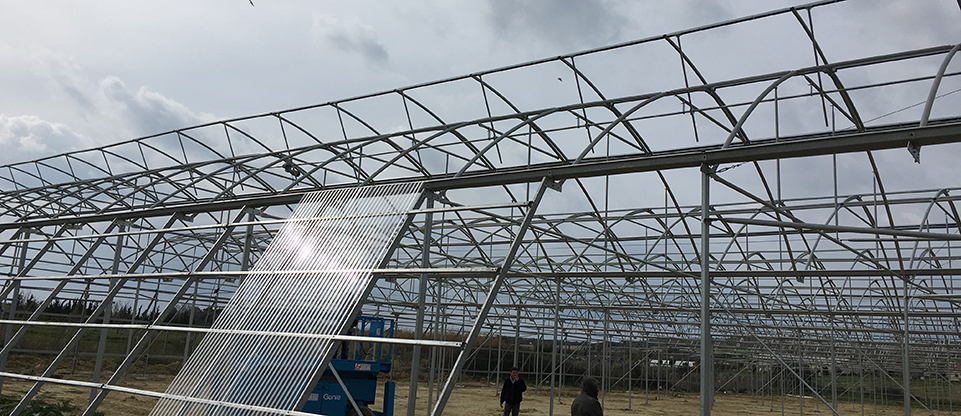

  • The frame is fabricated from galvanized steel. Gildan use galvanized tubes and an open profile to ensure longevity and sustained structural integrity. These unique tubes and open profiles are used to manufacture the major components of the structure frame & foundation.
  • The structure design complies with the Israeli Steel Structure standard and Structural Loads standards.

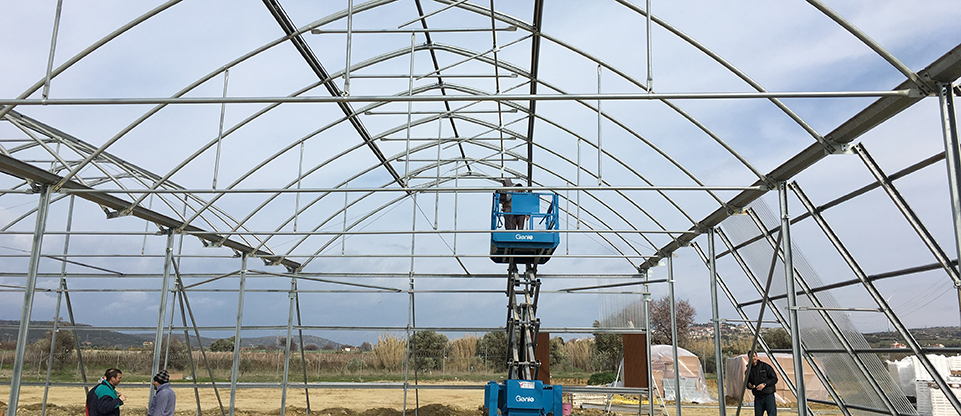

  • The structure is assembled using only nuts and bolts, requiring no welding work in the field.
Multiples of 9.6m or 12.8 m
Height under gutter
Up to 5.0 m depending on the model
Distance between arches
Multiples of 2.5m or 2.0m
Arch diameter
Movable Top vent width
2.0 m
Withstands wind speeds of :
120 - 150 km/h
Withstands trellising load up to:
25 kg/m²
